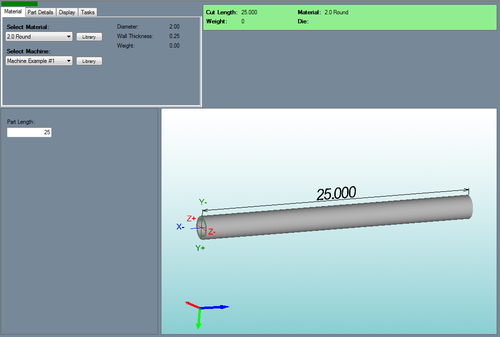

The straight part design interface is primary used for obtaining the cut length, weight, and general part information for straight parts.

Selection

Xyz part 2.png
To create a Straight Part:

1.) Go to the File menu, select New, then select Tube. In the Create New menu, click on the Straight Part option.

2.) Click the New Part icon and select the Straight Part option in theCreate New menu.

...OR

3.) Select the Straight Part option from the Task Menu that appears when the software starts up, when all designs are closed, or through the view menu.





Design

Once Straight Part is selected, a new part design window will open. If a default material and/or machine has not been set, a material and/or machine must be chosen before designing the part. If necessary, choose a material and/or machine from the drop down menus in the Material tab.

Next, the length of the part can be defined in the Part Length field. Straightpart 2.png
