Things To Know

  • This tutorial is designed to walk the user through creating a Header Design. As you go through this tutorial, later procedures will assume that you understand all earlier procedures. Because of this, it is very important that you carefully step through this guide, understanding everything along the way and following all steps in order.
  • A few key items need to be addressed before starting the step-by-step instructions of this tutorial. It is very important for Bend-Tech users to completely understand these items:
1) PickPoints
PICKPOINTS ARE USED FOR EVERYTHING. The Header part of the software is largely run in full 3D. Because a computer screen is only 2D, there is an unlimited amount of depth behind and in front of the cursor. A PickPoint is a point in 3D space that can be used for creating, editing, and placing parts in Header design. PickPoints can be placed in a 2D environment by having their depth manually entered in the appropriate value fields.
  • There are 2 types of PickPoints; Those automatically created by the part by default (various colors) and user-defined points (green). In addition, the initial (0,0,0) point is an automatic point that resides at the center of the Tri-Star. The Tri-Star is our directional definition locator.
2) Center Line & Apex
  • Center Line: In the Header design environment we are working exclusively with the center-line of a part, as compared to the inside or outside.
  • Apex: Most bend locations are created in Header Design with the Apex. Our definition of apex is the intersection of the straight tubes as if there wasn’t a radius.
This is demonstrated in the picture below.



3) Locational Orientation
  • Designing seems to work the best if users imagine they are standing behind the vehicle at a 45 degree angle. This way left is left and right is right. Take a minute and examine the Tri-Star to get your orientation.
Notice how the truck in the picture is setup with the same orientation.

W6.JPG W7.PNG


Header Tutorial

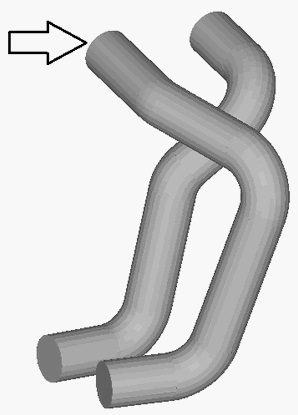

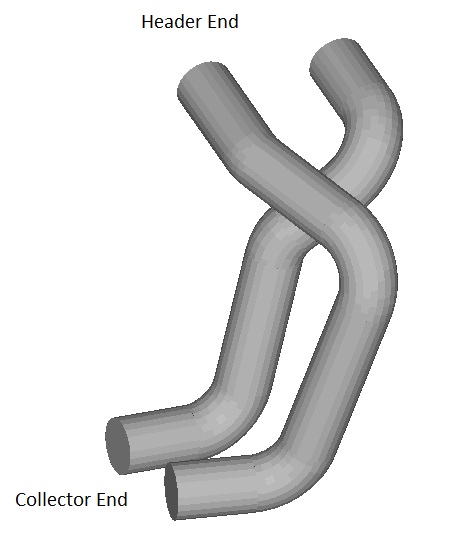

This image shows the header we will be building in this tutorial.




To begin, we must create a new header design using Pickpoints. To begin open a new Header Design tab by clicking the Header icon.

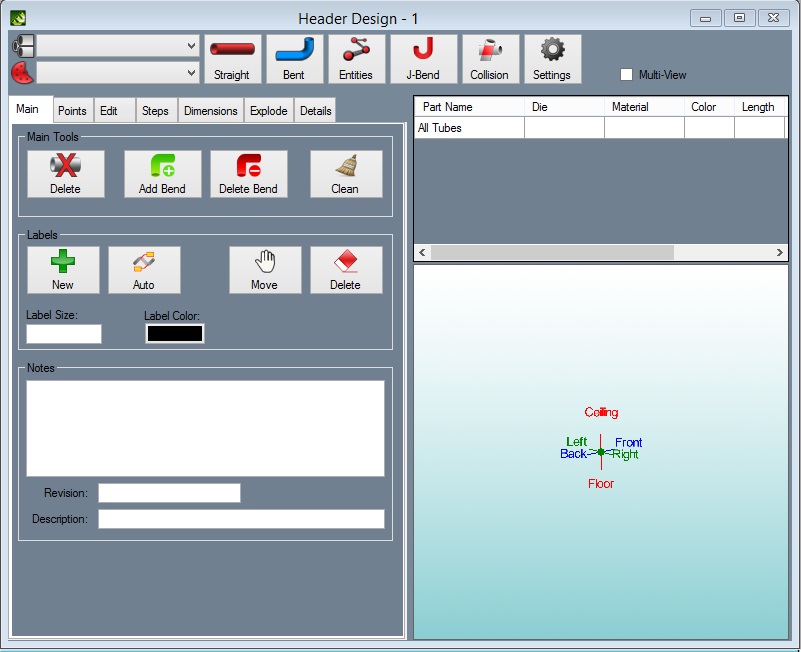

The Header design window is broke down into 3 main areas:

  • On the left is the tab area where we make our feature selections and value inputs.
  • On the right is the graphical area where we make our screen selections and can visually see our header.
  • Along the top is a set of the most common functions you will most-likely use within the header design.


Defining the PickPoints We Need to Know

Before we get started creating a header design in Bend-Tech HD, there are a few dimensions we must obtain. We need to find the locations of the following items:

1. Distance between header ports

2. Angle projecting away from the heads

3. Location of the collector in relationship to one of the heads

4. Relationship between collector ports

5. Angle projecting away from the collector back down the tube

6. Desired standoff lengths on both the head and collector tubes

Note: We will be using the terms header and collector very loosely. When referring to each, we are simply trying to describe the end of the tube we are referring to.

Diagram1.jpg Diagram2.jpg

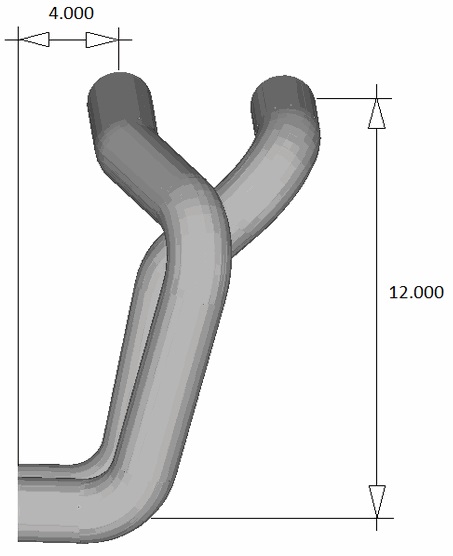

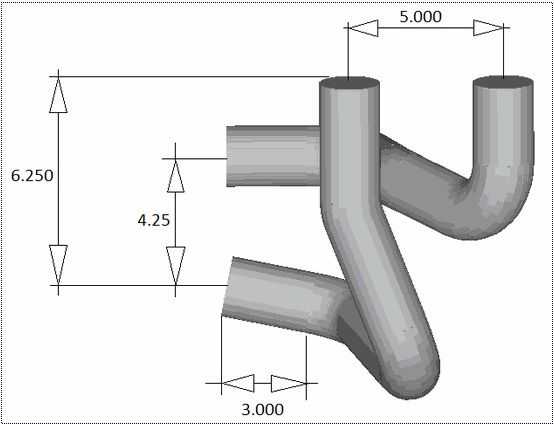

You will find in our diagrams that all of the needed locations have been defined:

1. Distance between header ports is 5.000.

2. Angle projecting away from the heads is 15 degrees.

3. The location of the collector in relationship to one of the heads is: 4.000 to the back, 12.000 towards the floor, and 6.250 towards the right.

4. The location of each collector port is 4.250.

5. The angle projecting away from the collector is 0 degrees (straight towards the front).

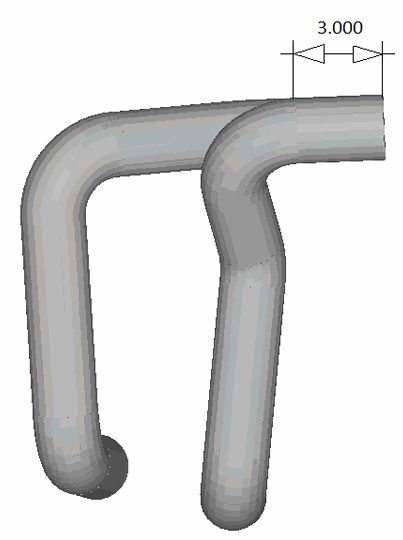

6. The desired standoff length is 3.000 for each end.

Creating PickPoints

We will start by creating the PickPoints to represent the locations described above. PickPoints are used to located tubes at exact points and know bend locations. Click on the Points tab. Within the Points tab, multiple sub-tabs will be shown. Ensure that the Single tab is selected then click the 'Set Reference' button.

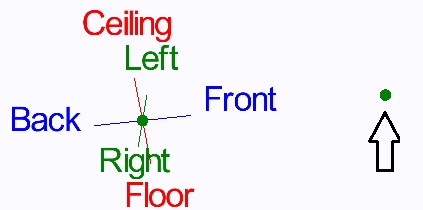

We will use the Tri-Star point as our first reference point for adding new PickPoints. It may be hard to see, but there is a green PickPoint at the center of the Tri-star. Select this point. Once selected, it should turn red.

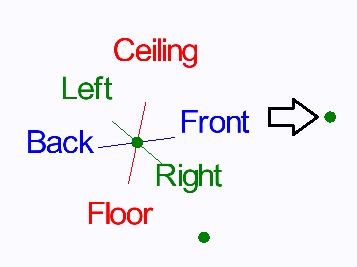

This PickPoint will be the header end of our first tube, as shown below. We will refer to this tube as our first header tube. The other tube will be referred to as the second header tube.


The first PickPoint we create will be the header location for the second header tube. You will find the distance between header ports is 5.000. The direction from the point we selected above to the second header port is towards the front.

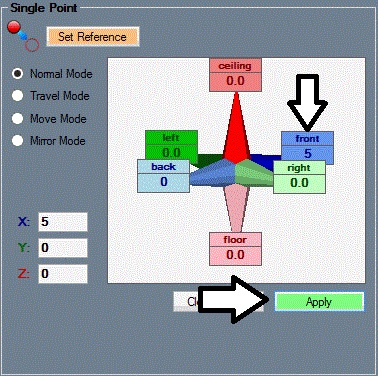

Enter 5 into the Front field on the Single tab. (You do not need the decimal and three zeros.)


As you enter values into these fields you will notice a green outlined, white PickPoint appear. This PickPoint represents the location of the new PickPoint based on the values that have been entered. This PickPoint is NOT part of the header design until you click the 'Apply' button.

Click the 'Apply' button. The green outlined white PickPoint will turn green. Your header design should look similar to the following image.

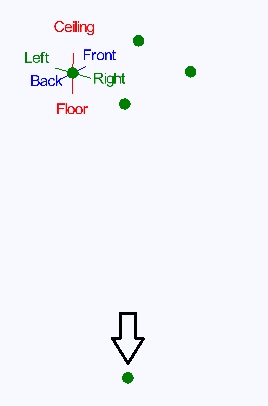

We now have our 2 header port locations, one at the Tri-Star and one 5 inches to the front. Now we will put in the PickPoints that are the start location of the first bends. These points can be referred to as the tangent points or the ends of the stand-off.

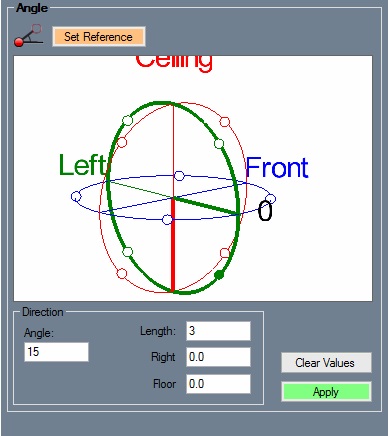

We will be using the Angle PickPoint method to locate these points. Select the Angle tab.

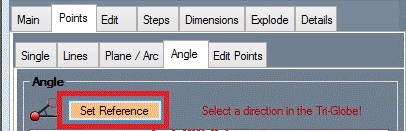

Click the 'Set Reference' button on this tab and click on the Tri-star PickPoint, which will turn red once selected.


We are now going to select the direction for this point. The first thing to do is to select which direction we will be moving. This is a combination of selecting a quadrant from the Tri-Globe and entering in the angle. The Tri-Globe consists of 3 interlaced circles, each circle representing a plane in space broken into four quadrants. Each quadrant is defined by a small circle. You select the quadrant you want by selecting the appropriate circle.

In our case, we want to go towards the right and towards the floor at 15 degrees. the large green dial represents this direction. Select the quadrant as sown in the image here.


Change the Angle field to 15 and the Length field to 3.

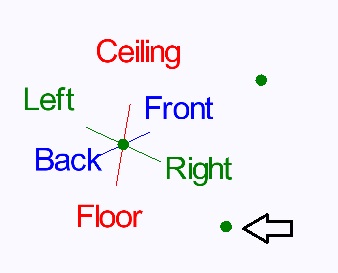

If the screen looks like the image below, click 'Apply'.



We have now completed the first tangent point for our first header tube. Now we will locate the tangent point for the second header tube.

Select the header port location point of the second tube to set it as the reference point (shown below). Note: You should still be in the Angle tab with the same values entered from the last point.


The new point should appear in purple. Click the 'Apply' button to create this new point.

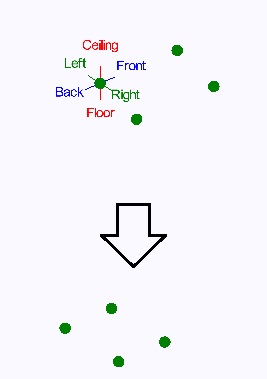

The four PickPoints are done for the header side of both tubes. We will now locate the four PickPoints on the collector side.

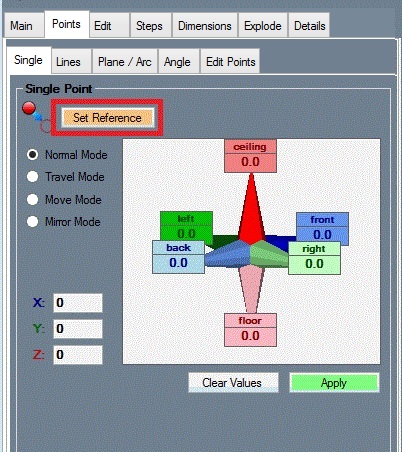

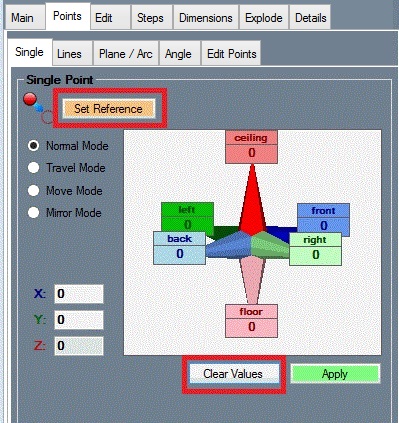

Select the 'Single' tab and then click the 'Set Reference' button. Click on the Tri-Star PickPoint to set it as the reference point and it should turn red.


Note: The values we entered before into the Front field may still be present. It is always a good idea to use the 'Clear Values' button to clear all direction fields before entering new values.

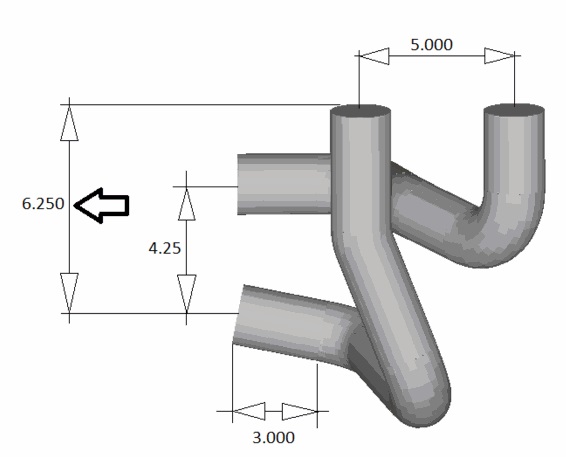

According to the dimensions for our part, the collector end of the first tube is Back 4 inches, Right 6.25 inches, and Floor 12 inches - from the header end of the first tube. Enter these values into the appropriate fields (shown below).

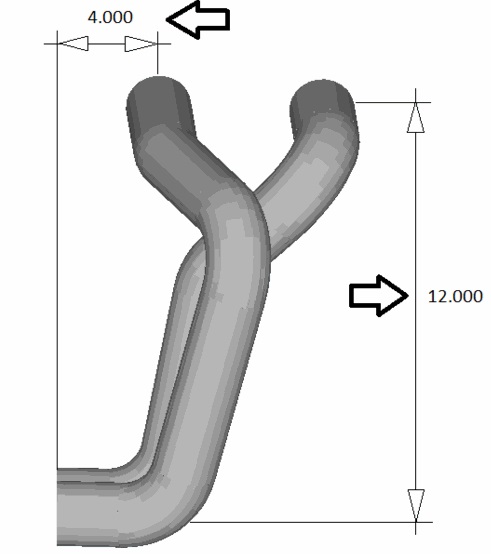

Diagram1.2.jpg Diagram2.1.jpg

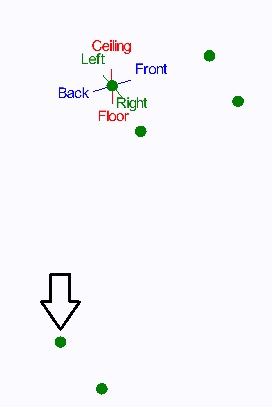

Click the 'Apply' button. A new PickPoint should be located as shown below.



Click the 'Clear Values' button to clear all fields. Select the PickPoint that we just created to set it as the reference point.

The distance for the second tube's collector end is 4.25 inches to the left of the first tube's collector end. Enter 4.25 into the Left field and the new PickPoint should be displayed to the left of the last point. Select the 'Apply' button to create this point.



Now it's time to locate the tangent points for the collector end of the tubes. Click the 'Clear Values' button to clear the direction fields.


Select the PickPoint we just created to set it as the reference point (shown above). Enter 3 into the Front field and select the 'Apply' button.

Select the PickPoint that is the collector end of our first tube to set it as the reference point and then click the 'Apply button.

You should now have the four points for the collector end of our tubes as shown below.

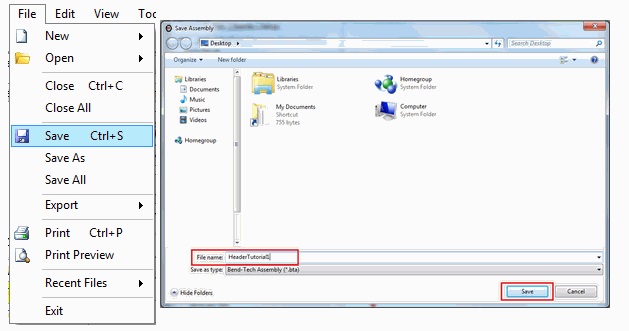

This is a good time to save our work. Select the File menu at the top of the screen and click the Save option. Enter a name for this header design and select the 'Save' button. You have now saved this header design to a file with the name you entered.


Creating Tubes

Now we set a default die and material. Click the drop down menu arrow for the Default Die/CLR option. Select a die from the the list that appears. For this tutorial, we will be using a 2.0 CLR die.


Note: If the die is not available in the list, it needs to be added to the Die Library. You cannot simply type in a CLR into the list. Refer to the User guide for information on adding dies to the Die Library.

We will perform similar steps to select our material. Click the drop down menu arrow for the Default Material option. Select a material from the list that appears. For this tutorial, we will be using a material with a 2.0 outside diameter. Select 2.0 from the list.


Note: If the material is not available in the list, it needs to be added to the Tube/Pipe Library. You cannot simply type a material into the list. Refer to the User Guide for information on how to add a material to the Tube/Pipe Library.


We are going to be creating one tube at a time. We will start out by creating the first header tube.

Select the 'Bent' button at the top of the Headers screen. You will now notice that the PickPoints we created earlier will now be displayed in the part display window to the right.



To create a tube, we select four PickPoints in order starting from one end.

1. Header Location

2. First tangent after Header

3. Tangent before collector

4. Collector Location

Note: The order in which you select the PickPoints is extremely important!!!

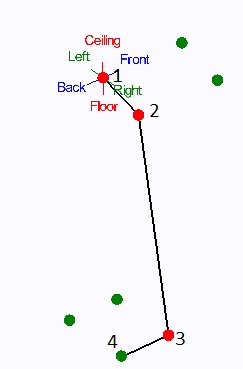

For the first tube (below), select these four points:

1. The header end - This is the Tri-Star point

2. The first tangent

3. The tangent before the collector

4. The collector end



After you have selected the four points, the software will add the radii and create the part.

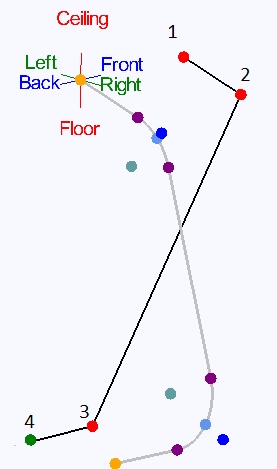

Repeat this process for the second tube. Select the 'Bent' button and select the PickPoints as shown below.



After you have selected the four points for the second tube, the software will add the radii and create the part. We are now done creating the two header tubes.

You may select the Display Mode menu at the top of the window and choose the 'Shaded' option to see a shaded display of the tubes. you can also zoom, pan, or rotate the display of the tubes using the mouse controls. To zoom, use the mouse scroll wheel. Scroll up to zoom , scroll down to zoom in. Pan/move the display by either clicking and holding the scroll wheel button or both mouse buttons and moving the cursor around. Rotate the display by clicking and holding the right mouse button and moving the cursor around.


Currently, our header tubes look like the picture below on the left. We will manipulate these tubes so that they look like the picture below on the right.

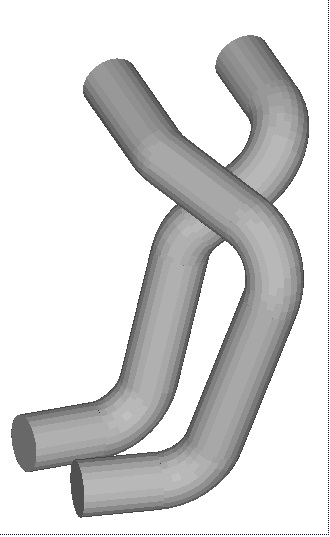

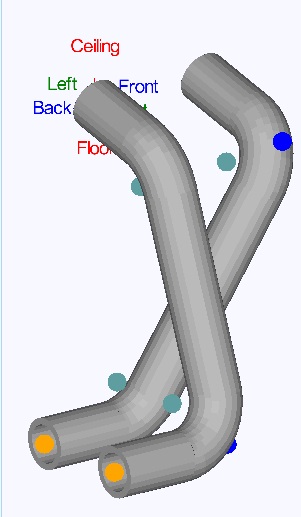

ShadedTubes.jpg Finished1.jpg

Adding/Moving Bends

To start, we need to add a bend to the tubes.

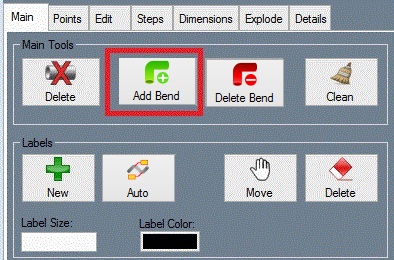

Select the 'Add Bend' button at the top of the Headers tab. The display will show pickpoints only at the locations where a bend can be added. Please not that bends cannot be added between the end of the tube and the first bend (on either end).

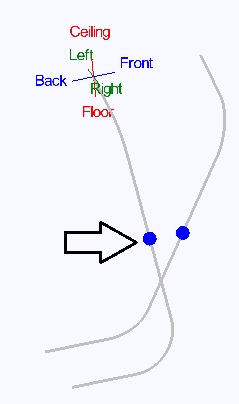

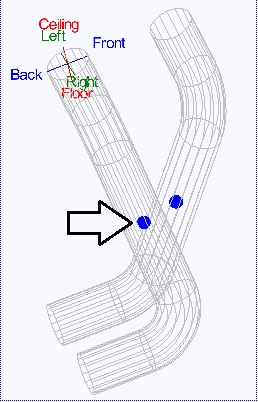

Select the PickPoint on the first tube and a bend will be added to the tube. The bend may be hard to notice, as it has a very small angle.

FirstBend.jpg FirstBendWire.jpg

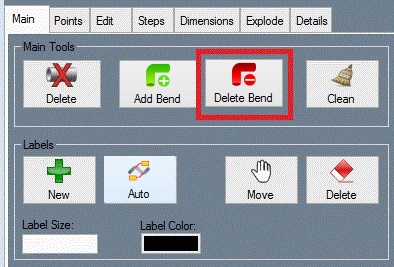

Note: If you accidentally selected the wrong tube for the bend, you may use the the 'Undo' option under Edit in the main menu bar or the 'Remove Bend' button at the top of the Headers tab to delete the wrongly placed bend.

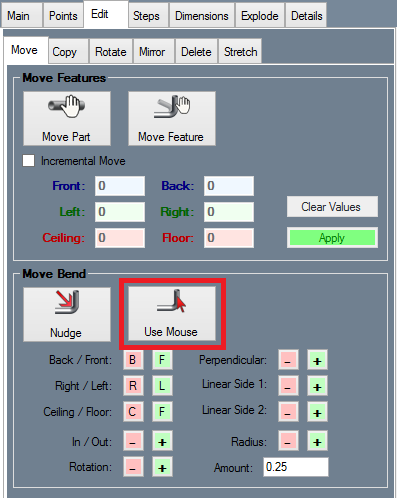

Now we will move the bend we just created to the correct location. Select the 'Edit' tab and then the 'Use Mouse' button under the 'Move Bend' section.

Use mouse1.png

Note: The first and last bends on any tube cannot be moved and are not available to be selected.

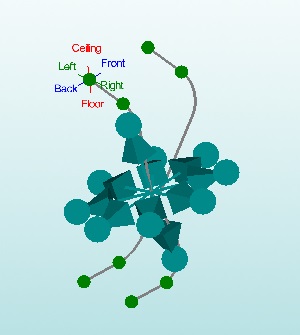

After selecting the 'Use Mouse' button, click on the bend we just added to the first header tube. A ring and a front and back set of teal PickPoints will appear around the chosen bend. This directional ring is used to allow you to move in 3D space by using the mouse (which moves in 2D).

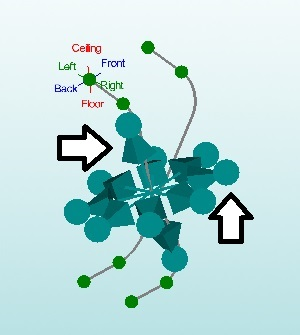

Each point on the ring represents a direction to push/pull the bend.

First, select the point on the right that is shown in the image below. To select the point, you must click and release the mouse as you would with a PickPoint. Once the point has been selected, move the cursor around to adjust the location of the bend. The bend will only move in the direction that was chosen.

Bend movement1.png

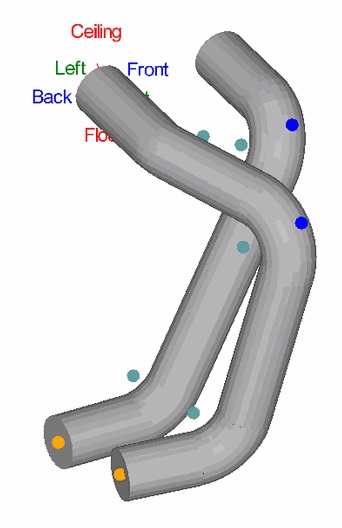

Continue selecting points and moving the bend until it looks similar to the image below. You will need to move the bend up (using the PickPoint just above the ring) at some point to get it a bit closer to the top of the tube.

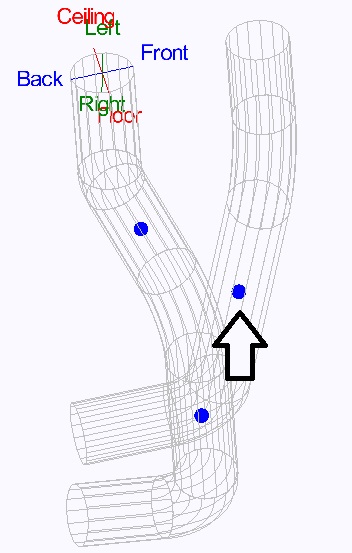

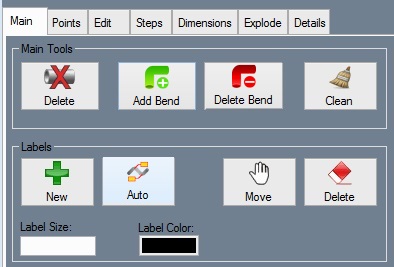

Next, we will add a bend to the second tube. Click the 'Add Bend' button and select the PickPoint on the second header tube.

AddBend2.jpg SecondBendWire.jpg

Note: You will now see the first header tube has two locations to add a bend, one on either end of the bend we added above.

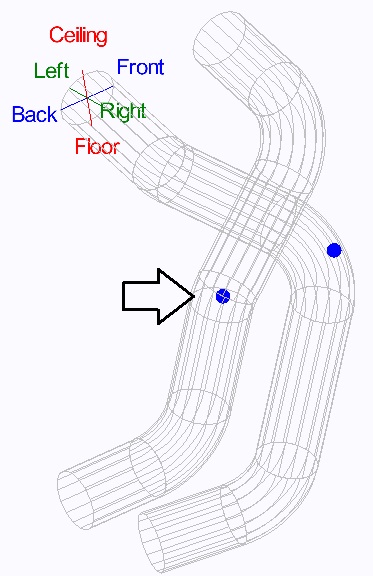

After selecting the second header tube to add a new bend, we will move the new bend. Click the 'Move Bend' button and click on the PickPoint on bend of the second header tube shown below.

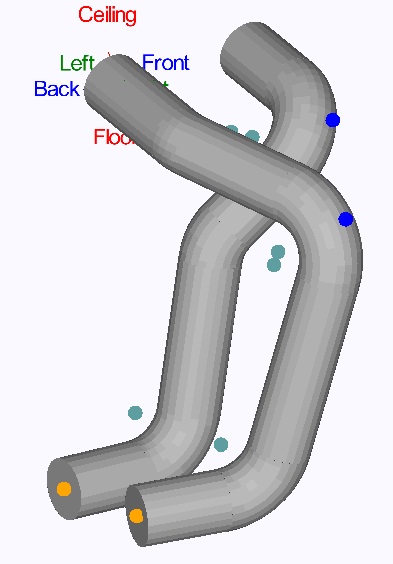

Select the directional PickPoint as shown below on the left. Keep selecting direction points and moving the bend so that it looks similar to the image below on the right.

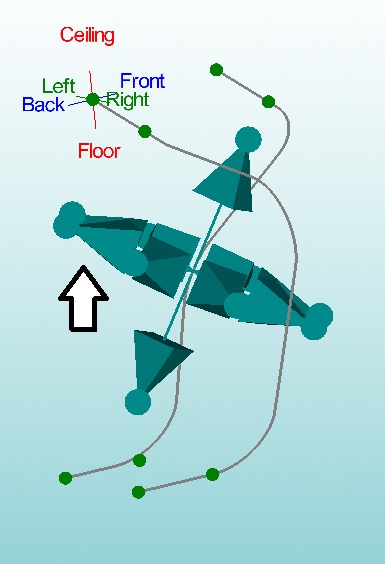

SecondBendDirection1.jpg SecondBend.jpg

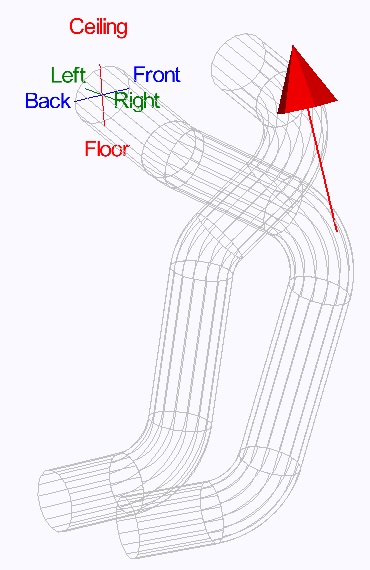

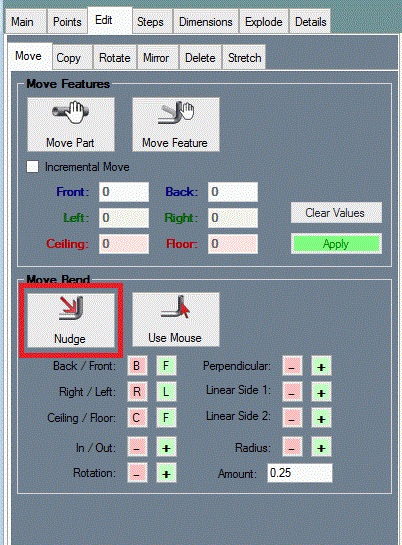

As you may notice, the Move Bend command is for large, inaccurate movements. For fine movements of bends, HD has the Nudge function, which allows for small movements in absolute directions. In the Headers tab, select the 'Nudge' tab. You will find several '+' and '-' buttons. The display will also show a PickPoint for every bend that can be moved. Nudge allows the first and last bend on each tube to be slid in and out only.


Click the 'Select Bend' button and select a PickPoint on one of the bends. Now place your cursor over the '+' and '-' buttons and you will see a direction arrow as shown below. This arrow will show the direction each button will move the bend.

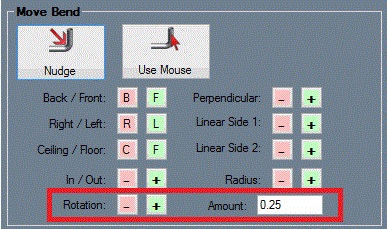

Each press of any of these buttons will move and/or rotate the bend by the amounts specified in the Amount field. You many also hold down the button to continue moving the bend in the selected direction.

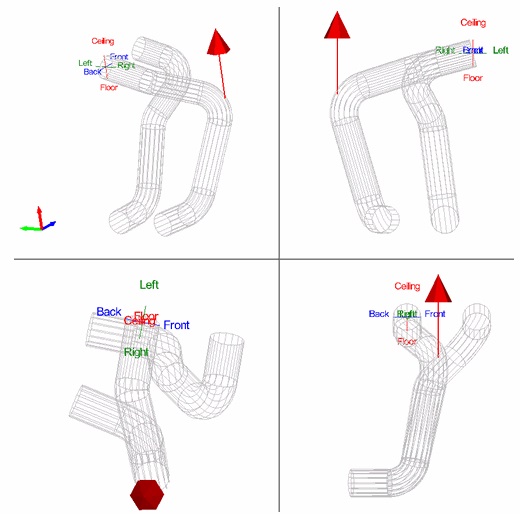

While the box next to Multi-View is checked, the display screen will be separated into four sections (shown below), each displaying a different angle view of the header tubes. This can make it easier to see where the bend is being moved.


Use the 'Select Bend' command button if you need to select a different bend to move. You can also rotate the picture around to check for interference between the tubes or by using the 'Collision Check' button. If a collision between tubes occurs, you will find points down the middle of the tube where the collision is found.


Changing Tube Color

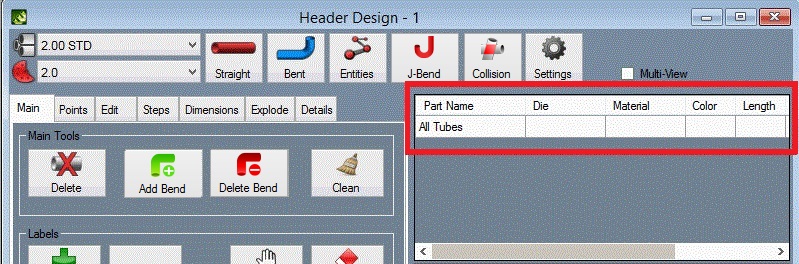

In list at the top of the window you will see a list of all tubes in the header design. You can change the color of any tube by selecting the colored cell for the tube in the Color column. Once you select a cell, you will be prompted to select a color for the tube. Select the color you desire and select the 'OK' button. The chart and part display will be updated with the color you selected.


Tube Details

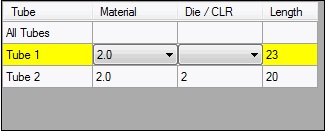

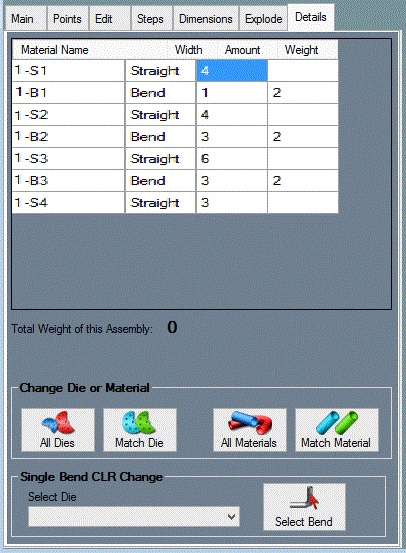

Select the Detail tab; this tab will display the details for a tube in the header design. Select a single tube in the Tube list above by clicking on it. Once a tube is selected in this list it will be highlighted in yellow. A list will appear and display the following items: name, type, length, radius, angle, rotation, diameter, and material used. Each straight and bent or J-Bend section of the tube will have its own row in this list. You may need to use the scroll bar at the bottom of the list to see all the information. You can view a full size version of this chart by double clicking on it.

TubeDetails.jpg Tubedetails2.jpg

J-Bends and Labels

The default feature type in the software is no J-Bends, which means the software will display each arc and straight tube individually. the feature type for each tube can be changed under the Explode tab.

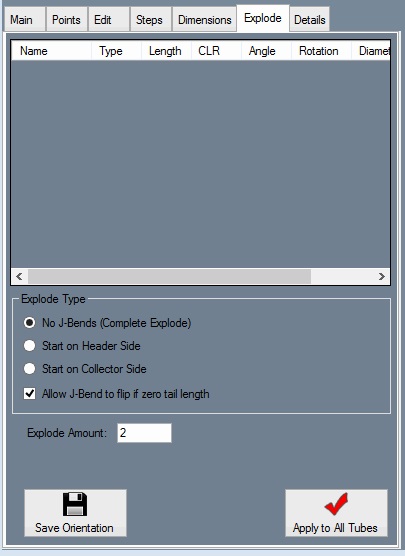

Within the Headers tab, select the Explode tab. Ensure that Tube 1 is selected from the list above. If it isn't, select it by clicking on Tube 1 in the list. Once selected, it will be highlighted in yellow. Select the Start on Header Side option.


You will find that the tube coming out of the header is a straight tube and not a J-Bend. If you select Start on Collector Side, you will find the tube coming out of the header IS a J-Bend and the last tube is a straight tube. See the images below for an example of how this looks.

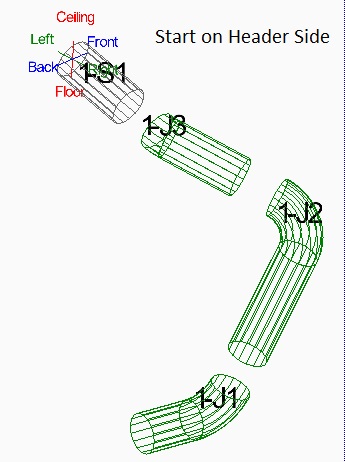

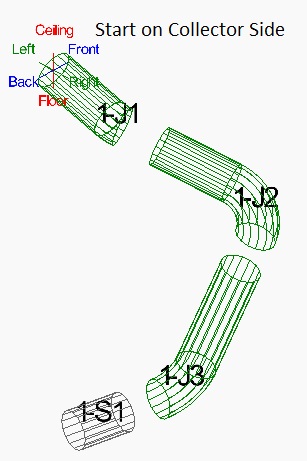

ExplodeHeaderSide.jpg ExplodeCollectorSide.jpg

You may also rotate and move the part around to a position that you like and then save the orientation using the 'Set Orientation' button.

Moving Labels

Make sure the 'Display Labels' box is checked. While this option is enabled, each section will be labeled in the part display frame to the right.

If you select the 'Move Labels' button, you will be allowed to move each label anywhere on the screen by selecting the PickPoint representing the label.

Still within the Headers tab, you may now select the Detail tab and review the updated information with J-Bends enabled.

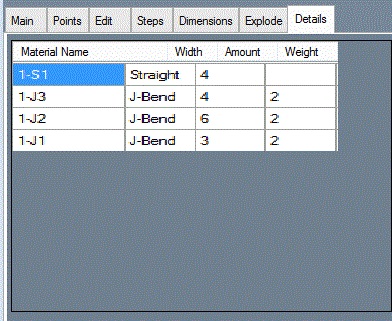

ExplodeTab2.jpg ExplodeTab.jpg


Note: The J-Bend type, part orientation, and label locations are all saved with the part file when you save the header design.

Cutting J-Bends

Bend-Tech HD has the ability to show you how to optimize and cut your J-Bends. Still within the Headers tab, select the Tools tab and you will find 2 command buttons among a couple other options. The 'J-Bend Library' button will open the J-Bend Library, which allows you to define the pre-bent J-Bends you will use with the software. Refer to the user Guide for more information on how to use the J-Bend Library.

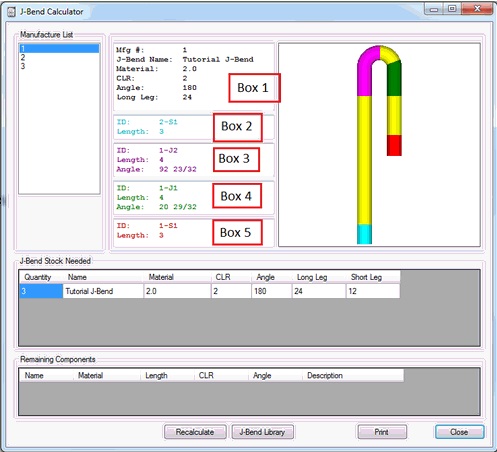

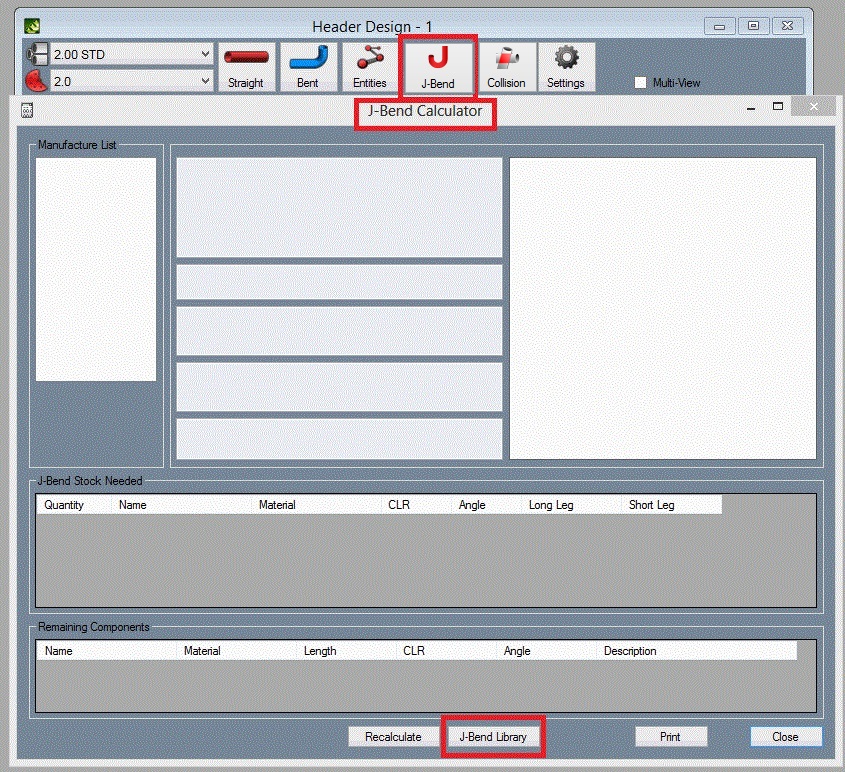

The 'J-Bend Calculator' button will calculate and display recommended methods for cutting your J-Bends to manufacture the header tubes you have designed. Click the 'J-Bend Calculator' button.

A new window will be displayed with a multicolored J-Bend and information in several boxes. This information defines how the J-Bend should be cut:


Box 1: The description of the material stick (J-bend) needed.

Box 2: The straight tube on the long side.

Box 3: The J-Bend on the long side. This description is both the bend and straight length for this section.

Box 4: The J-Bend on the short side. This description is both the bend and straight length for this section.

Box 5: The straight tube on the short side.


Note: Some material sticks (J-Bends) may not consist of all four sections being used. the yellow sections display on the J-bend are scrap.

The software may not be able to find a suitable solution for some components in your header tubes. If any components cannot be manufactured from the available J-bends in your J-Bend Library, a list will be display on the bottom of the J-Bend calculator.

Note: If you did not set a J-Bend type under the explode tab, you may find many parts in this list. Ensure that each tube in the header designis not set to no J-Bends under the Explode tab.

Mirroring Parts

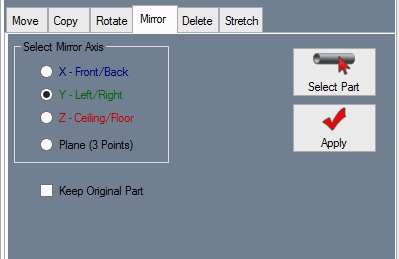

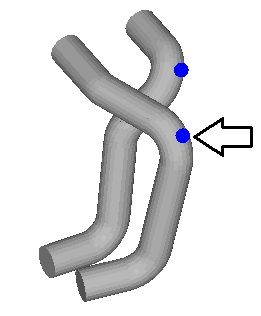

The mirror function allows you to mirror a single part in one of six directions, and to offset the part after it is mirrored. In the Headers tab, click the 'Mirror Tube' button and we will mirror both of our header tubes. Select the PickPoint on the first header tube and a menu box will appear in the top left corner (shown below). Select the Left option and enter 12 into the Distance field. Click the 'Apply' button to mirror the tube.


Mirror1.jpg Mirror2.jpg


The tubes should now look like the image below.

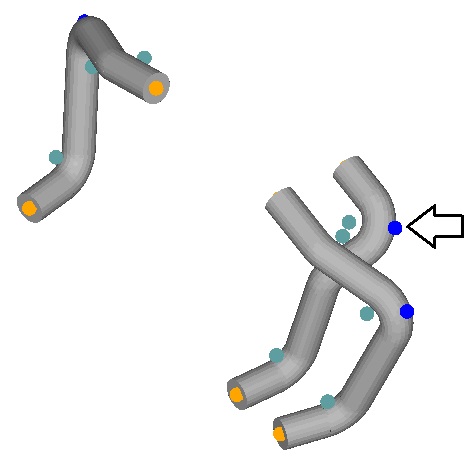

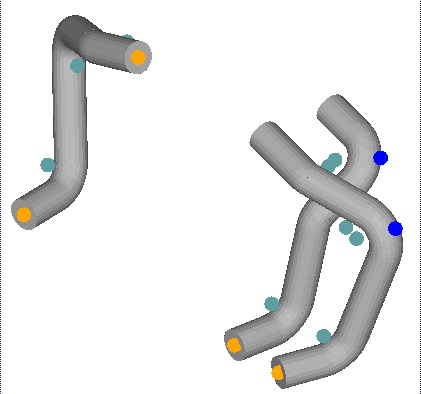

Now we need to mirror the second tube. Click the 'Mirror Tube' button again. Click on the second header tube PickPoint and the mirror menu box will appear again (shown below). Select Left and enter 12 into the Distance field. Click the 'Apply' button to mirror the tube.

Mirror4.jpg Mirror2.jpg

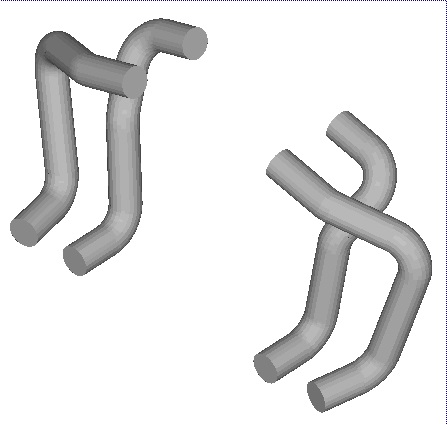

If both tubes have been successfully mirrored, the tubes should look like the image below.




Global Options

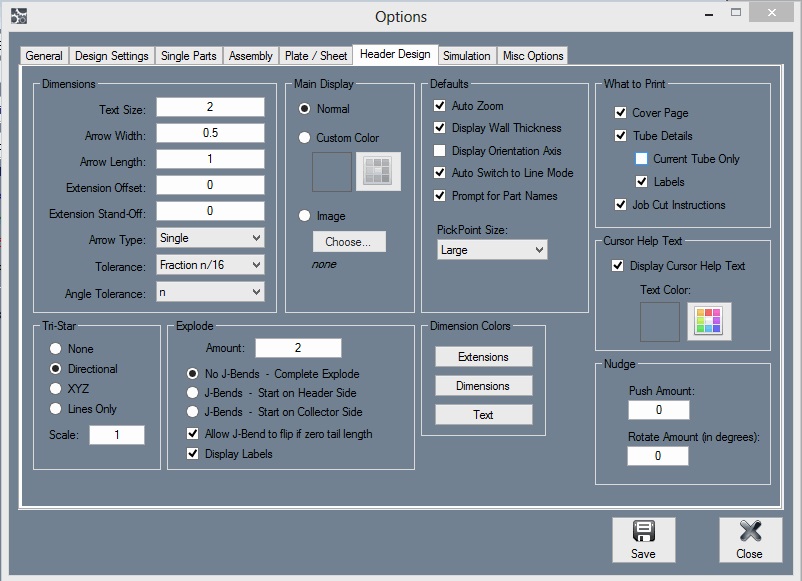

Select the Tools menu at the top of the window in the main menu bar then select Options. This menu holds a series of tabs. Click on the 'Header Design' tab to access and adjust default settings for header designs. The values that are displayed are used as defaults during the operation of the software. Adjusting these values to what best works for you will save you time as you continue to use the software.

TutorialTools.jpg OptionsHeader.jpg

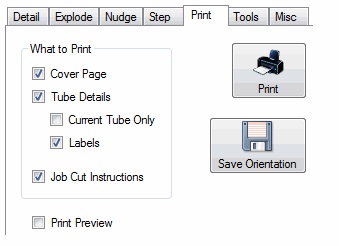

Printing

Under the File menu you have the ability to select a printer and print a document. In many places, the software has Print command buttons available. these button typically represent a specific type of document to print. You will find an example of this on the Print tab under the Header tab.


Continuing On...

We realize that this tutorial does not cover all areas of the software. However, we hope you found it to be helpful and that is has given you the tools to feel confident to explore more on your own.
