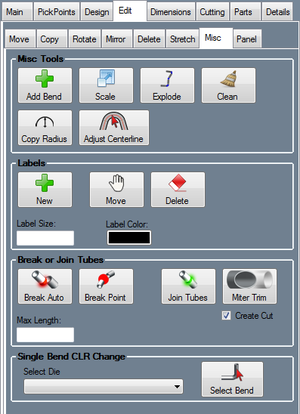

Misc Tools

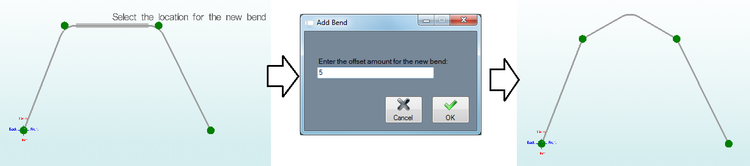

Add Bend
To add a bend to a preexisting part, click the Add Bend button
and select a straight length of a part by clicking on it to choose a location for the bend. The bend will be placed at the mid point of the selected part length.
Enter the offset distance between the part and the bend. Then click the OK button to place the bend. Whichever die is currently selected in the Assembly die menu will be used for this bend.

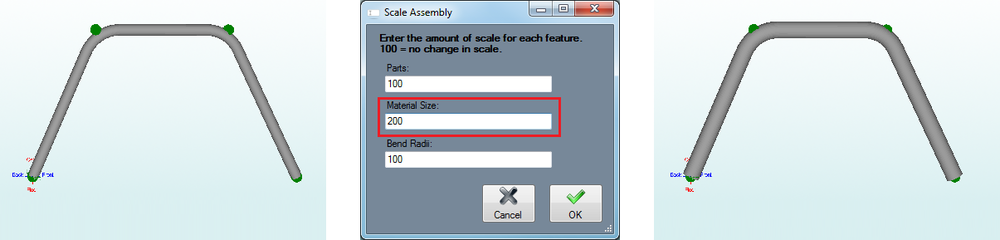

Scale
To scale the size of parts, material, or bend radii, click the Scale button.
In the scale window, scale values for each of these features can be supplied. Provide a percentage value to either increase or decrease the scale of a feature. See image below for an example.
Explode
Exploding an Assembly will move all parts away from each other so that they can be viewed separately.
First, click the Explode button.
The click on a PickPoint to set the base point for the assembly, and enter an explode factor to explode an Assembly project. Larger numbers will create greater distances between the parts. Click the Explode button to reset the assembly back to the normal display.
Clean
Click the Clean button
to clear the assembly of any zero length tubes that may be in the assembly design.

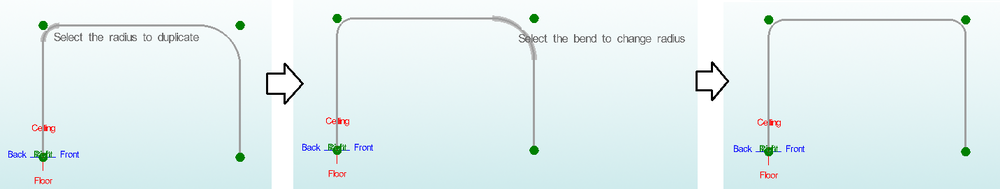

Copy Radius
Click the Copy Radius button
to copy the radius of one bend to another.
First, select the bend with the radius that you want to copy. Next, select the bend that the copied radius will be applied to.

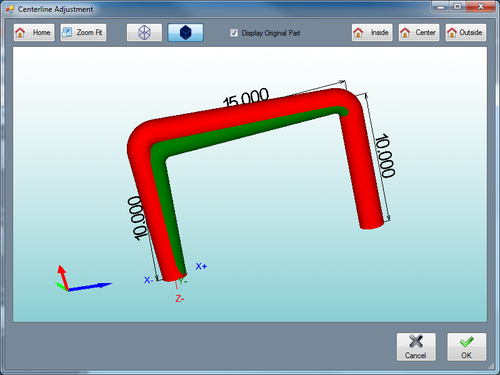

Adjust Centerline
Click the Adjust Centerline button
to change how the part measurements are interpreted. In the part designers, parts are assumed to be based on centerline. This tool allows the current part dimensions to be from the inside or outside of the tube instead.
After clicking the button, select a part in the display to adjust it.

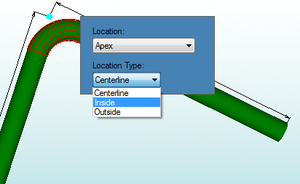

To change the Location and/or Location Type for a bend, first select the bend by clicking on it in the part display. A menu will appear where the location and location types can be adjusted. Click on either of the drop down menus to choose new options.
Once a new location or location type has been chosen, a red preview reflecting the location changes will appear. The original part will be shown in green (if the Display Original Part is checked).
Click the Home button
to set the part preview to the default location and orientation.
Click the Zoom Fit button
to zoom all the way in on the current view of the 3D part display and fit it to the display frame.
The part model can be shown in either wire frame or as a solid shaded model. Click on the wireframe button
to show the model in wireframe. Click on the shaded button
to show the model as a shaded part.
Check the box next to Display Original Part to have the original part preview shown in the adjust centerline interface after changes are made to the locations.
Click the Inside button
to set the locations for all of the bends to inside.
Click the Center button
to set the locations for all of the bends back to centerline.
Click the Outside button
to set the locations for all of the bends to outside.
Click the OK button
to take the location and location type adjustments and apply them to the current part design.

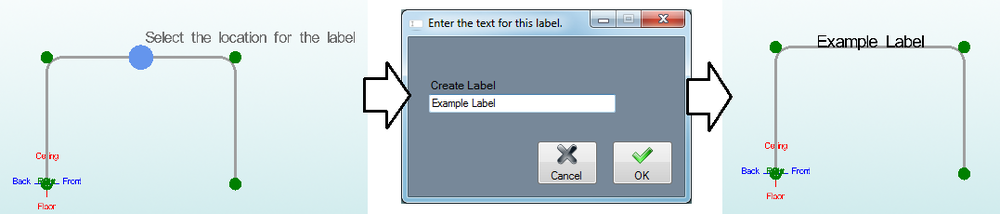

Labels
To place labels on the current assembly design, first click the New button
and select a location for the label by clicking on a PickPoint. Next, enter the label text and click OK.
The size of the label font is determined by the Label Size value (larger values result in larger labels and vice versa). To change the size, enter a new value in this field. The color of the labels is determined by the Label Color button. To change the color, click this button and select a new color.
To move a label, click the Move button
and select a new PickPoint to place the label in the new location.
To delete a label, click the Delete button
and click on a label.
Break or Join Tubes
Click the Break Auto button
to automatically break the part at a specified interval.
First, define the maximum length of tube required between break points in the Max Length field. Next click the Break Auto button and select a part to break it.

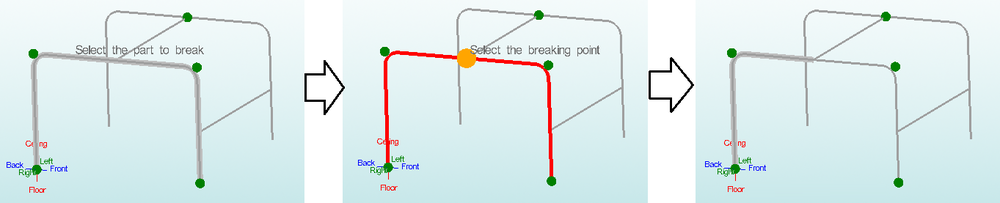

Click the Break Point button
to place a break point on a certain part. Break points will define where the part will be separated. After clicking this button, select which part will be broken by clicking on it in the display area. Last, select the PickPoint where the break will occur.
Click the Join Tubes button
to connect two tubes together. First, select the first part to join, and then select the other part that will be joined to it.

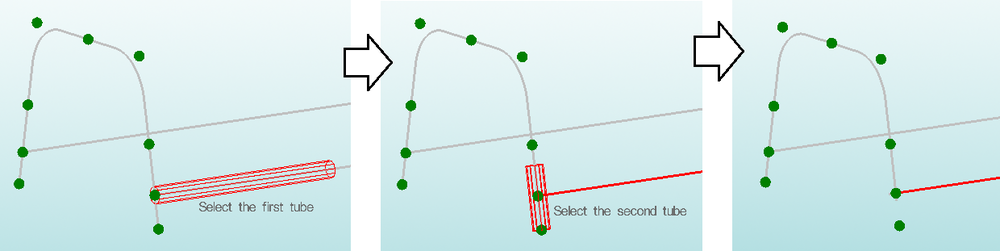

Click the Miter Trim button
to add a miter at the intersection of two tubes.
First select the first tube that will be mitered. Next, select the other tube that will be mitered. These tubes will be given some extra length to compensate for the mitering cut (See image to the right). If the Create Cut option is checked, a cut will be applied to the part at this point on the part. Cuts can be seen in the Cutting tab.

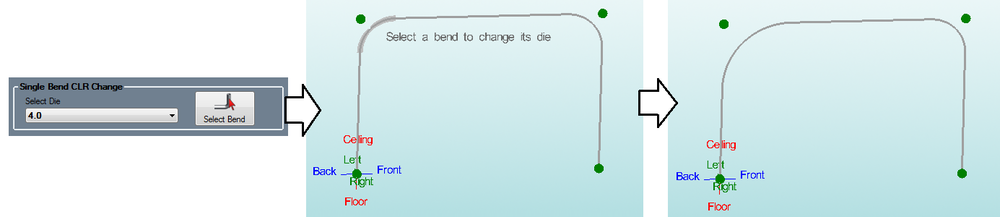

Single Bend CLR Change
To adjust the CLR of a single bend, first select a die in the Select Die menu in the Single Bend CLR Change area. Next click the Select Bend button
and click on a bend to apply the selected die to it.
