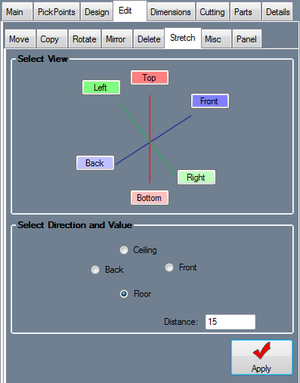

Stretch moves a selection of PickPoints in a specified direction, adjusting all parts to compensate.



First select a view. This will determine which direction the assembly will be viewed from during the stretch process.

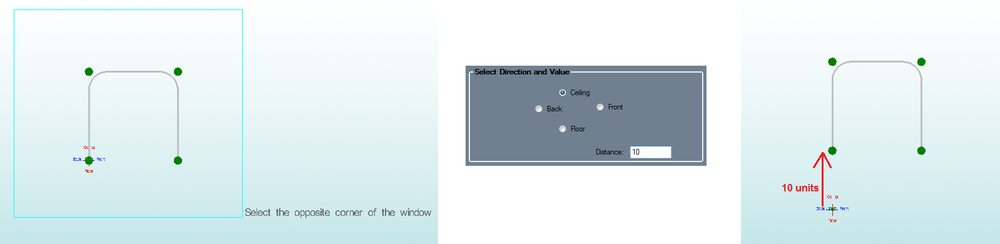

Select the parts/PickPoints that will be stretched by clicking on any two spots on the display in order to draw a selection rectangle between them (the rectangle will be defined by a light blue line).

Then select a direction and enter the amount that the selected parts/PickPoints should be moved in the Distance field.


Click the Apply button Apply part.png to apply the stretch.


Edit stretch 1.png
