EZ-3D Main Menu Bar

From Bend-Tech 7x Wiki
Jump to: navigation, search

Menu bar.png At the very top of any of the design window, there is a menu consisting of file, edit, view, tools, window, and help. Click on these menu options to access the drop down menus.

File

In the File menu, new files can be created, opened, imported, exported and/or saved, windows can be closed, setup sheets can be printed, and recent files can be accessed.


File menu.png

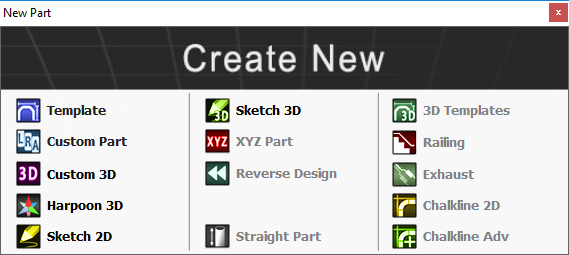

New: New parts can be started under the 'New' option. Place the cursor on 'New' to access each file type. Choose Tube. When 'Tube' is selected, the New Part menu will display. A new part designer can be opened from this window.

File menu EZ-3D 3.png


Open: Part files can be opened under the 'Open' option. Place cursor on 'Open' to access each file type. Choose 'Tube'. Once the option is selected, the Open menu will appear. Choose a file to open and click 'Open' to open it into a design window.


Close: Click the 'Close' option to close the current active window. If the design hasn't been saved yet, a window asking whether to save it or not will display.


Close All: Click the 'Close All' button to close all design windows. If any of designs have not been saved, each un-saved part windows will have a prompt asking whether to save or not. To save it, click 'Yes', give it a name, and click the 'Save' button. Click 'No' to close without saving. Click 'Cancel' to neither close or save.


Save: Click the 'Save' option to save any progress in the current active window. If the design has already been saved, it will be saved to the file it was previously saved in. If the part hasn't been saved previously, the 'Save' menu will appear. Give the design a name and click the 'Save' button.


Save As: Click the 'Save As' option to save the current design in a new file location. The Save menu will open. Give the design a name and click the 'Save' button.


Save All: Click the 'Save All' option to save progress in all open design windows. If any of the designs have not been saved previously, a Save menu will appear for each window. Give the design(s) names and click 'Save'.


Export: Part designs can be exported as Bitmap image (.bmp) files only using the 'Export' option. Click the "Export" link for further information on exporting designs. Most any other option will require a higher level product.


Convert Files: Here, you can convert files from an older version of the software to the version you're currently on. These files will have to be located on the currently used computer.


Page Setup: In the page setup menu, the paper size, printer tray, orientation, and margins of the part print out sheets can be defined.

File menu 2.png


Print: Click the 'Print' option to print out the setup sheet for the current part. To add or remove anything from this page, check/uncheck any of the printing options in the Settings tab in the tabbed section near the upper left corner of the part design frame.


Print Preview: Click the 'Print Preview' option to see a preview of the setup sheet. Use the icons in the top left corner to adjust the zoom and the amount of pages shown. Click the 'Print' button to print the setup sheet. Click 'Close' to close the print preview without printing.


Recent Files: Place the cursor over the 'Recent Files' to see the last 10 files that were opened. To open a file, click the file name. Click 'Clear List' to remove any recent files shown in the list.


Exit: Click the 'Exit' option to completely close out of the software. If any files haven't been saved, a prompt will appear for each unsaved window asking whether to save or not.

Edit

In the Edit menu, the option to Refresh a design file is available. Since the EZ-3D software is very basic in its functionality, the Undo and Redo options are not needed.

Edit menu2.png

View

View menu.png

In the View menu, the toolbar and status bar features can be hidden/shown.

This is also a great place to get back to the Task Menu when necessary.






Toolbar/Status Bar

Click on the 'Toolbar' option to either hide or show the toolbar. While a check is displayed next to Toolbar, the icon toolbar at the top of the page will be shown.

Toolbar EZ1.png



Click on the 'Status Bar' option to either hide or show the status bar. While a check is display next to Status Bar, the status bar (date, time, and website link) in the bottom right corner will be displayed. The left hand corner of the status bar will also notify you when a part has been successfully saved or exported as a .bmp file.

Status bar EZ1.png

Features

Not available in EZ-3D.


Mode

Not Available in EZ-3D.


Task Menu

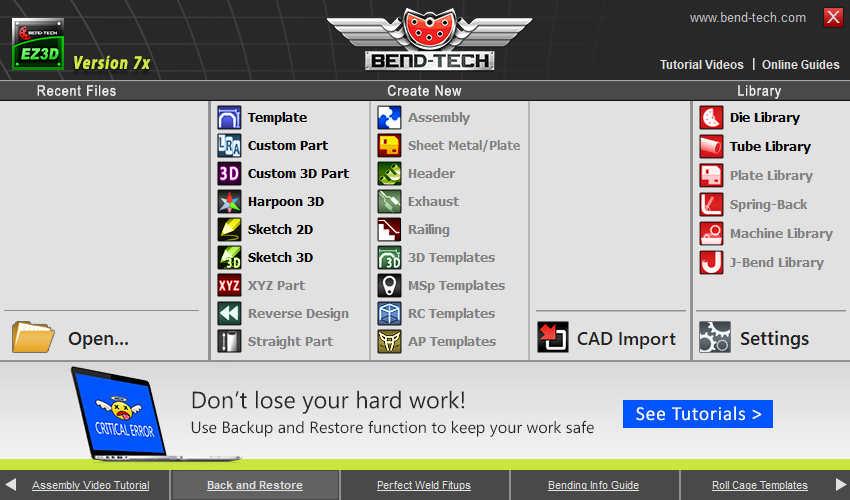

Select the Task Menu option to access the task menu. This menu is used to start new parts, assemblies, plates, import files, view the various data libraries, open files, and open the settings menu. Resources such as manuals, tutorials, and online wiki help can be accessed here as well.

EZ-3D Startup Screen1.png

Tools

EZ-3D tools menu.png

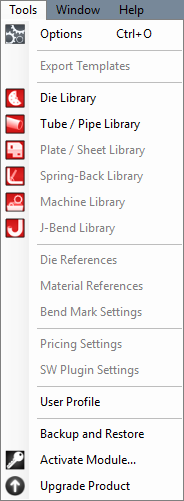

In the Tools menu, the Options Menu, Export Templates, Die Library, Tube/Pipe Library, Plate/Sheet Library, Spring-Back Library, Machine Library, J-Bend Library, Die References, Material References, Bend Mark Settings, Pricing Settings, SW Plugin Settings, User Profile, Backup and Restore, Activate Module and the Upgrade Product menus can be accessed.



Options

Click 'Options' to access the options/settings menu. Follow the "Options" link for further information on each tab in the Options menu.

Export Template

Not available for EZ-3D.


Die Library

Die Library

The die library stores all of the dies that can be used. On the left side of the die library, a list of all available dies is show below 'Die List'. To the right of the list, Die details are shown.


Tube/Pipe Library

Tube/Pipe Library

The Tube/Pipe Library holds all the materials that can be used to create bent parts in the part designers.


Plate/Sheet Library

Not available for EZ-3D.

SpringBack Library

Not available for EZ-3D.

Machine Library

Not available for EZ-3D.

J-Bend Library

Not available for EZ-3D.

Die References

Not available for EZ-3D.

Material References

Not available for EZ-3D.

Bend Mark Settings

Not available for EZ-3D.

Pricing Settings

Not available for EZ-3D.

SW Plugin Settings

Not available for EZ-3D.

Register SW Plugin

Not available for EZ-3D.

User Profile

User profile.png

Entering information in the User Profile allows the user to have their information attached to the software. The initials given here will be printed on any setup sheets that are printed out.

To add or change any of the user profile information, simply enter a new definition for any of the available fields. Click 'OK' to save and exit. Click 'Cancel' to exit without saving any entered information.









Backup and Restore

The software can backup and/or restore all the data libraries, part files, favorite templates, user profile, export templates, and program settings.


Activate Module

Not available for EZ-3D.

Upgrade Product

After purchasing an upgrade for your Bend-Tech software, it can be updated using this form. The Serial Number and Key Code are required to successfully upgrade.

Upgrade product.png








Window

The Window menu contains options for window display and arrangement.

Window 1.png

New Window

Click the 'New Window' option to bring up the Task Menu.

Cascade

Click the 'Cascade' option to have all open windows shrunk and layered in the top left corner of the frame.

Tile Vertical

Click 'Tile Horizontal' to have all the currently open windows layered on top of one another from the top to the bottom of the main window.

Tile Horizontal

Click 'Tile Vertical' to have all the currently open windows layered on top of one another from left to right.

Close All

Click the 'Close All' option to close all currently open windows. If any open windows have not been save previous to clicking this option, a prompt for each unsaved design will appear asking to save it or not.

Part List

At the bottom of the Window menu, a list of all opens windows will be shown. A check will be shown next to the part design that is currently in front. To bring a different part design to the top of all other windows, click on the design name.

Help

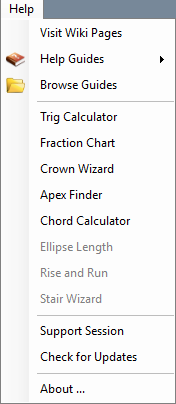

In the Help menu, help guides, trig and crown wizard, the fraction chart, apex finder and chord calculators can be accessed. This is also where you can send a support session of a problem or question you have and where you can check for updates and information about your seat and software serial number.

EZ-3D help 1.png


Visit Wiki Pages

Click this option to open this wiki web page in a new browser window.


Help Guides

To view a list of all the guides and tutorials, place the cursor over the 'Help Guides' option. Click on any of the options in this list to access the chosen guide or tutorial in a pdf format.


Browse Guides

Click the 'Browse Guides' option to open the directory where all the help guides are located.


Trig Calculator

Click the 'Trig Calculator' option for help on calculating the lengths and/or angles of a right triangle. Enter at least one angle and one length or two lengths to find the total set of lengths and dimensions for the triangle. Click the 'Clear' button to clear out all entered values. Click 'Close' to exit the Trig Calculator.

Trig calc1.png

Fraction Chart

Click the 'Fraction Chart' option to access a chart of fraction and decimal comparison chart. The first column will contain a list of fractions and the second column will contain a list of the equivalent decimal values. The fraction column can be adjusted by selecting a new fraction tolerance from the 'Fraction Tolerance' drop down menu. For example, if 'n/16' is chosen, the fraction column will start at 1/16 and be incremented by 1/16 until it reaches 1 at the bottom of the column. The precision or tolerance of the decimal column can be adjusted by selecting a new tolerance from the 'Decimal Tolerance' drop down menu. In both of the 'Fraction Tolerance' and 'Decimal Tolerance' drop down menus, the 'n' represents a digit placement.

Fraction chart1.png

Crown Wizard

Click the 'Crown Wizard' option to calculate the part details/measurements of a part that has a crown to the top a straight section between two bends. To do so, enter the radius of the first bend and second bend, the width from the center of the first bend to the center of the second bend, and the desired height of the crown into the appropriate fields below 'Input'. See the provided diagram in the Crown Wizard frame for help on where to get the proper measurements. Once both radii, the width, and height are entered, click 'Calculate' to bring up the results. Once clicked, the crown dimensions/measurements will be shown below 'Results' along with a preview of the crown part to the right. Use the mouse scroll wheel to zoom in and out out of the preview - scroll up to zoom out and scroll down to zoom in. To move/pan the preview, click and hold the scroll wheel or both mouse buttons and move the cursor around.

Crown wizard1.png

Apex Finder

Click the 'Apex Finder' option to open the Apex Finder menu.

  • Type 1: To calculate the distance from the apex of the previous bend to the current bend's apex click the circle next to 'Type 1'. To able able to use Type 1, at least two bends are needed.The A length is the measurement from the center of the bend to the apex of the previous or next bend. The B length is the measurement from the top of the centerline of the bend to the apex of the previous or next bend. See the diagram used in the Apex Finder window for a better explanation on how to acquire these lengths. Once A and B have been found, enter these values into the 'A' and 'B' fields along with the Centerline radius of the bend in the 'CLR' field. Once entered, the final C length will be shown in the field next to 'C'.
Apex 11.png
  • Type 2: To calculate the angle of the apex, the length from the apex to the end of the bend leg, and the distance from the top of the bend's centerline to the apex, click the circle next to 'Type 2'. The only necessary features are a bend and two legs. The A length is the distance from the centerline of the top of the bend to the end of the leg. The B length is the distance between the centerline of one leg to the other. See the diagram supplied for a more accurate representation of how to acquire these measurements. Once these measurements have been found, enter the A value into the 'A' field, the B value into the 'B' field, and the centerline radius of the bend in the 'CLR' field. Once these values have been supplied, the C, D, and angle b values will be shown in the fields below. The C length is the distance from the apex to the end of the bend leg, the D length is the distance from the the top of the bend's centerline to the apex, and the angle b value is the angle of the apex.
Apex 21.png

Chord Calculator

  • Type 1: To calculate the length of the segment by giving the radius of the arc and the length of the chord, click the circle next to 'Type 1'. The radius of the arc (red line) is the distance between the center of the arc and the top of the arc. The length of the chord (blue line) is the distance between each leg of the arc. Enter each value into the appropriate fields next to 'Radius of Arc' and 'Length of Chord'. Click the 'Calculate' button to generate the length of the segment (green line) in the 'Length of Segment' field.
Chord 11.png
  • Type 2: To calculate the radius of the arc by giving the length of the chord and the length of segment, click the circle next to 'Type 2'. The length of the segment (green line) is the distance from the top center of the arc to the chord. The length of the chord (blue line) is the distance between each leg of the arc. Enter each of the values in the appropriate fields next to 'Length of segment' and 'Length of Chord'. Click the 'Calculate' button to generate the radius in the 'Radius of Arc' field.
Chord 21.png

Ellipse Length

Not available for EZ-3D.

Rise and Run

Not available for EZ-3D.

Stair Wizard

Not available for EZ-3D.

Support Session

If you encounter any difficulties working with the software or need help with a specific feature, send a Support Session. Attach the part, assembly, or plate files that are related to the issue at hand, if applicable. Provide a full name, email, and phone number and an explanation of the issue. Click the Submit button to send the request to the Bend-Tech support team.

Support sessions1.png

Check For Updates

To manually check for software updates, select this option and the software will search for and apply any updates.

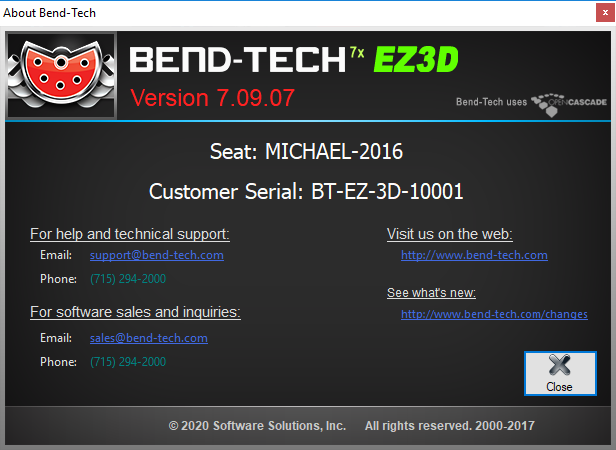

About...

Click the 'About...' option to access some basic information about the software. This window will contain which version of the software is in use and contact information for either support or sales inquiries.

EZ-3D about12.png
